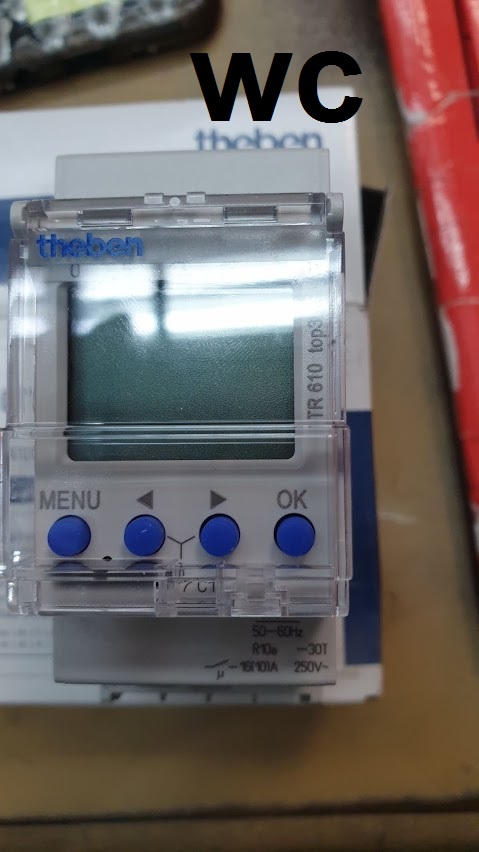

ยี่ห้อ THEBEN นาฬิกาตั้งเวลาแบบดิจิตอล DIGITAL TIME SWITCH รุ่น TR610 TOP3

The TR 610 top3 digital time switch from Theben with weekly program, 1 channel and 56 memory locations can easily be programmed using the Bluetooth OBELISK top3 software.

• Digital time switch with weekly program
• 1 channel
• Programming by app possible
• Safe transfer via optional Bluetooth Low Energy OBELISK top3
• Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the bluetooth OBELISK top3 is plugged into the time switch
• 100% compatible with top2
• DuoFix spring terminals
  • For 2 conductors each
  • Wire or stand (with or outwith wire end sleeve)
  • Wire diameter 0.5-2.5 mm2
  • Button for releasing plug-in connection
• Text-oriented user guidance in display
  • Preset date and time
  • fully operable without mains connection
• 56 memory locations
• Interface of OBELISK top2 memory card (PC programming)
  • 2. insertable switching program
  • Copying programs
  • Storing programs
• 10 year power reserve (lithium battery)
• Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices)
• ON-OFF switching times
• Switching preselection
• Permanent switching ON/OFF
• Integrated operating hour counter
  • Reset option
  • Service function for monitoring maintenance intervals
• Holiday program
• Display back light (can be turned off)
• Permanent switching ON/OFF
• PIN coding
• Automatic summer/winter time changeover
  • can be deactivated
  • Date rule options are already stored for Euro, the USA and other counties
  • own date rule options or changeover around set dates are available
