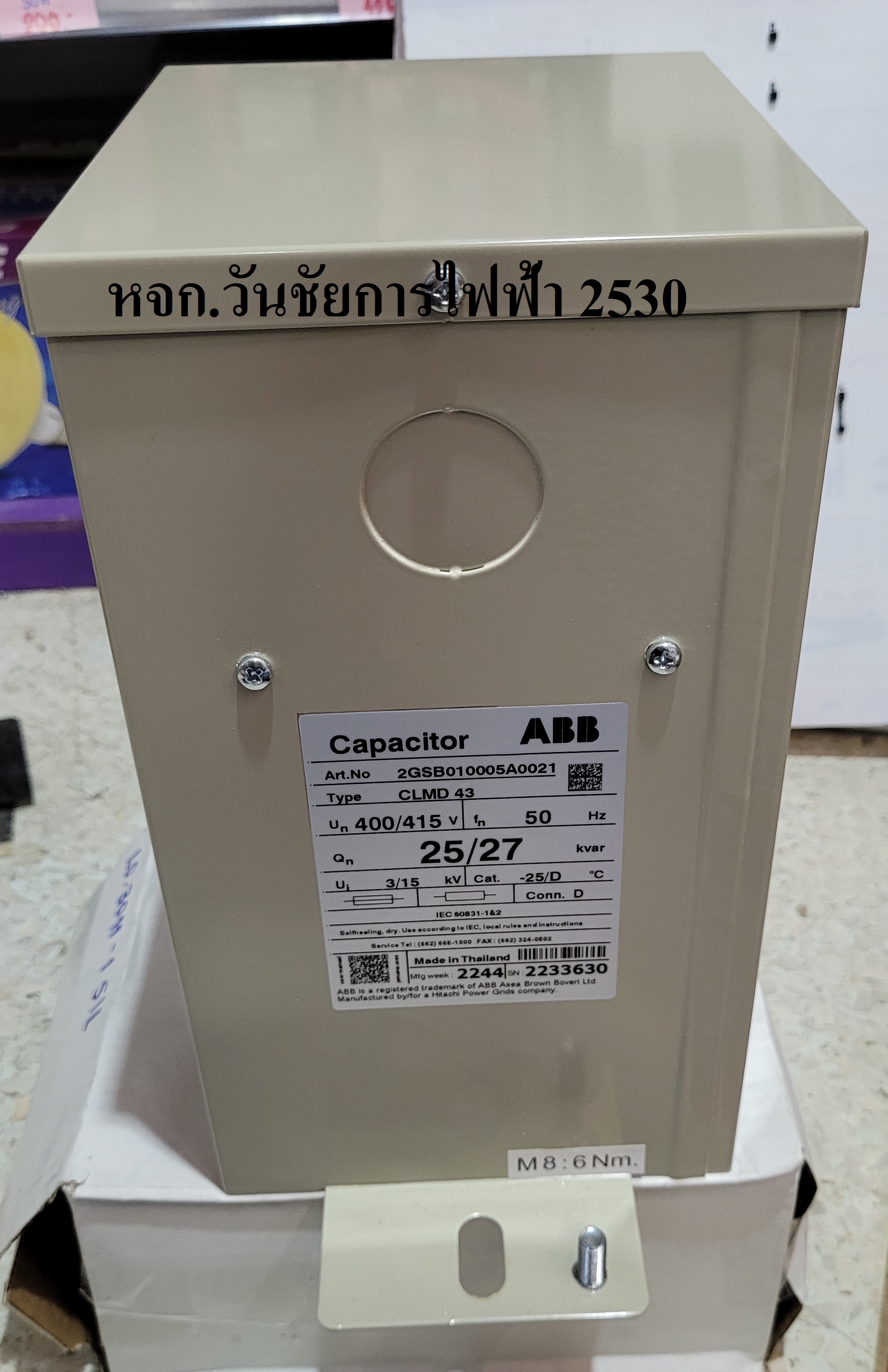

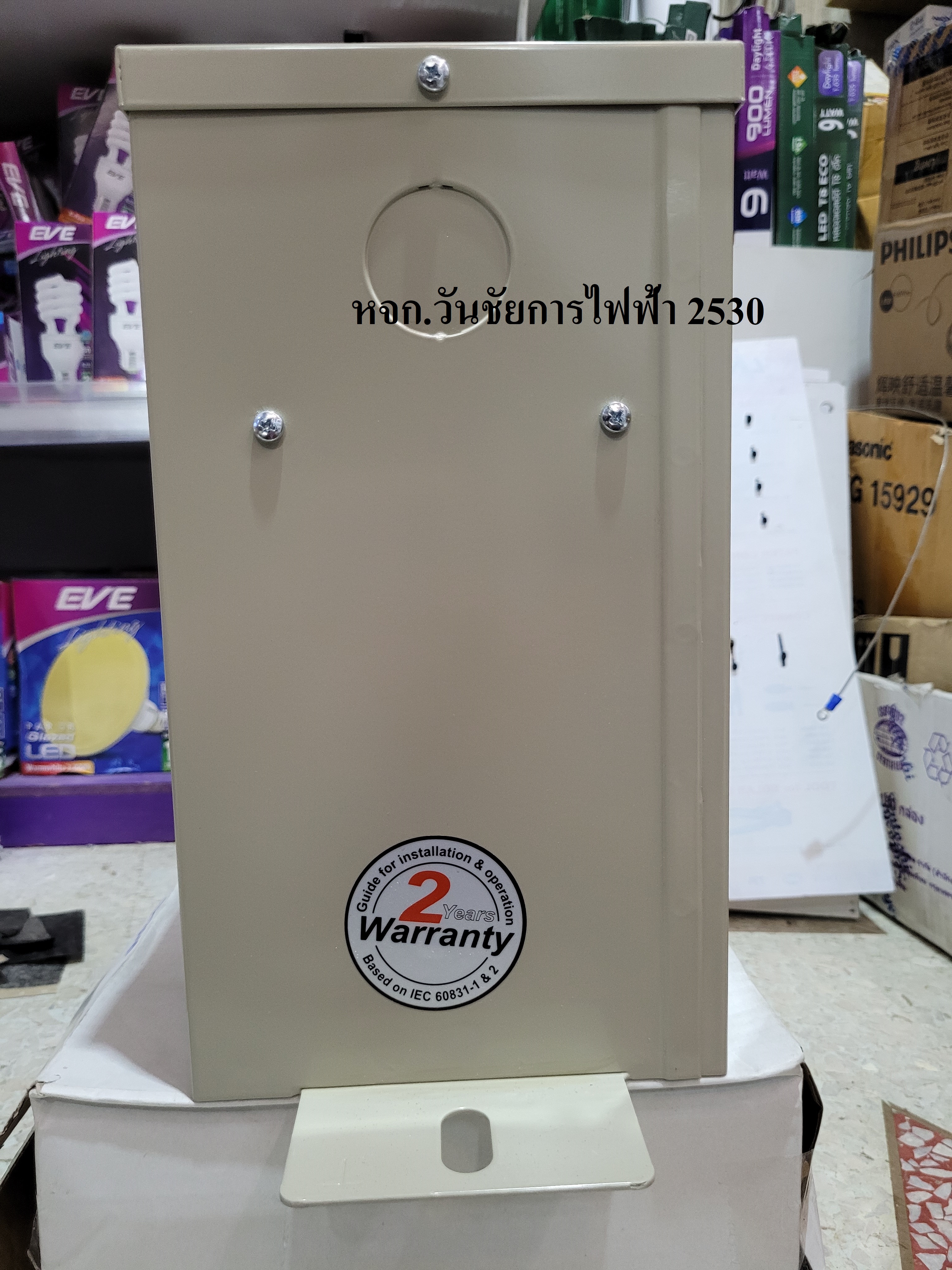

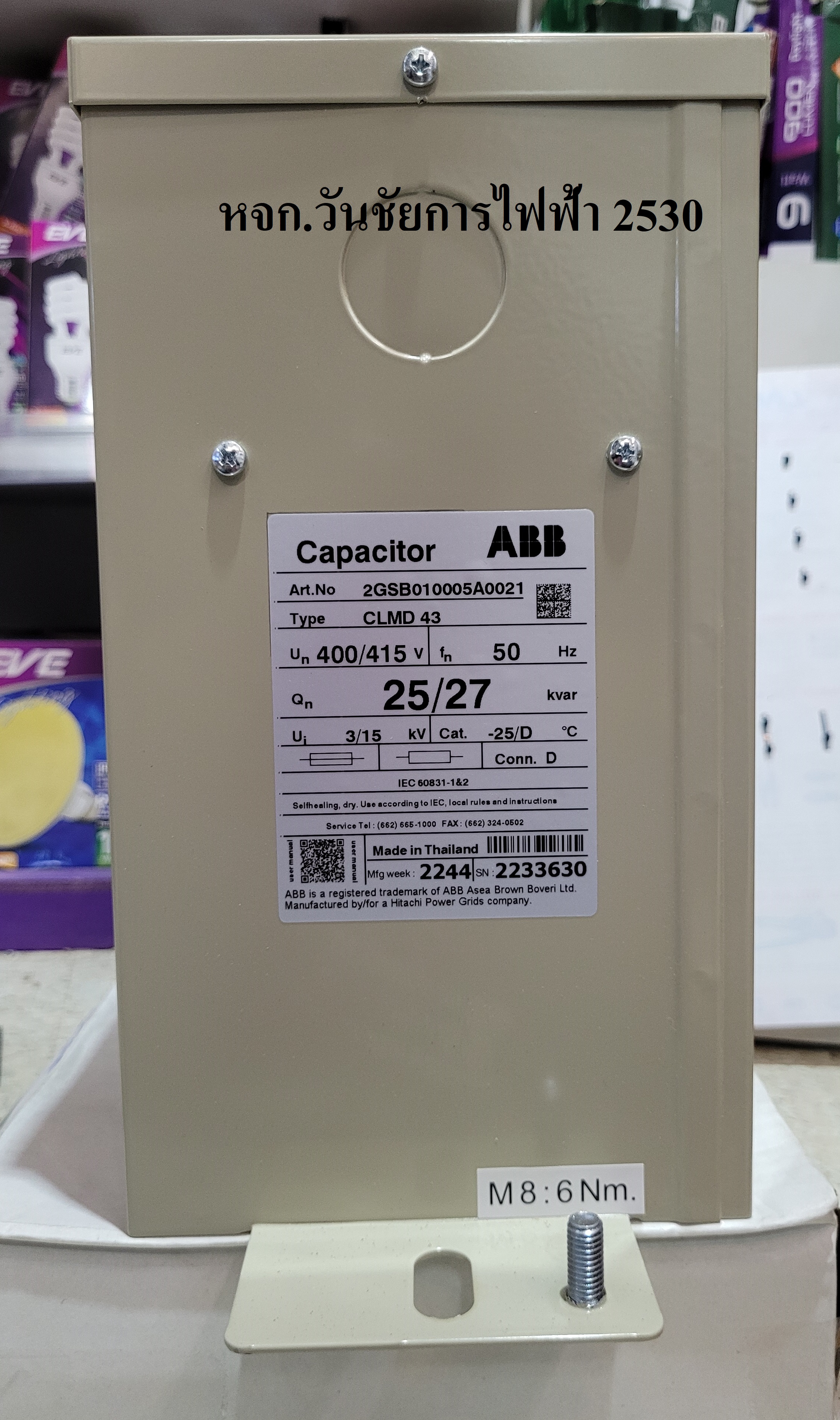

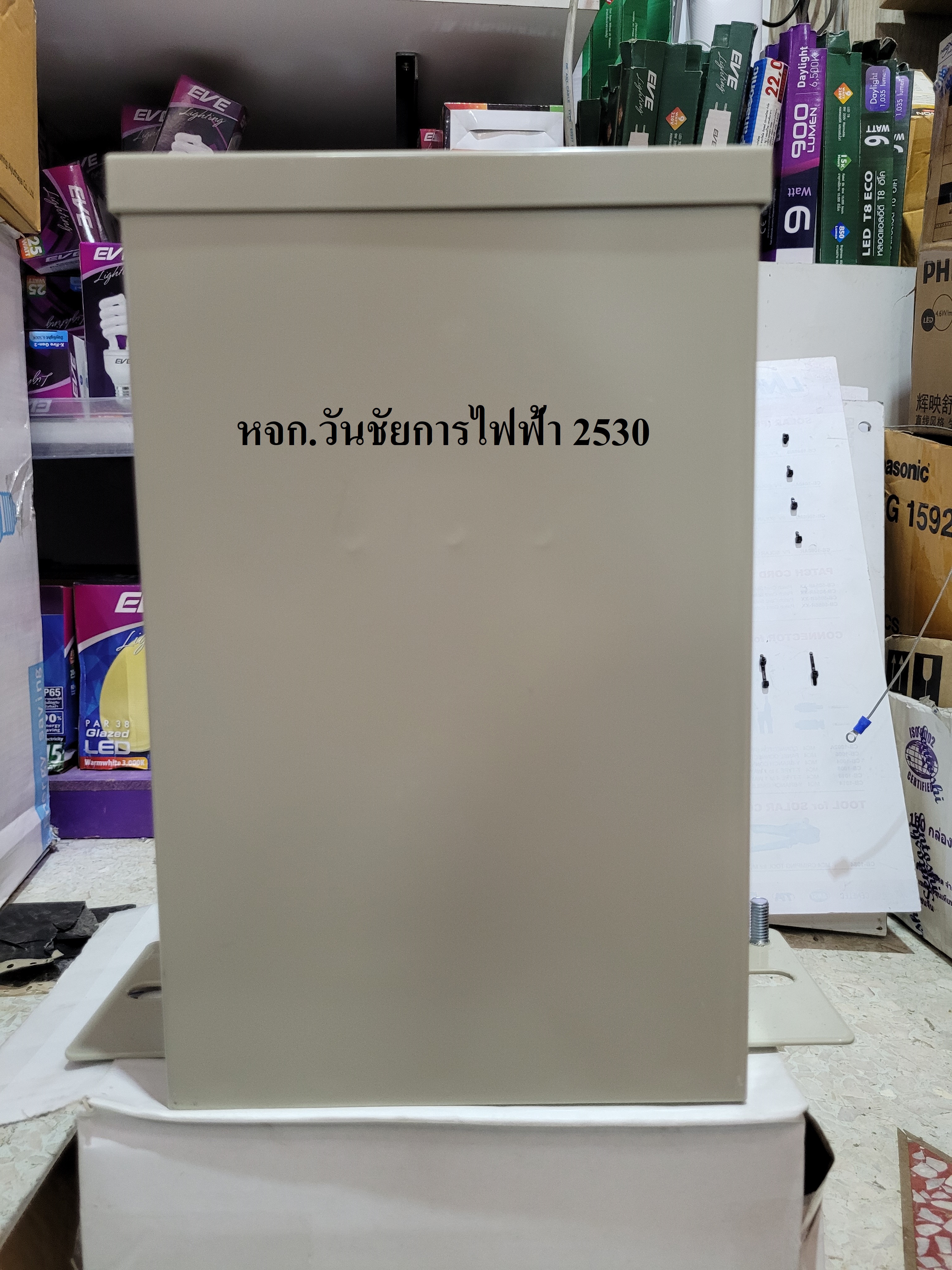

คาปาซิเตอร์ CLMD43 25KVAR 3เฟส 3P ABB/HITACHI พร้อมใบกำกับภาษี

Standard IEC 60831-1&2
Rated voltage 200-1000 V
Connection 3-phase (single-phase on request)
Rated frequency 50 and 60 Hz
Type Self-healing, dry
Dielectric Polypropylene (metalized)
Execution Indoor (outdoor on request)
Overvoltage 1.1 UN at intervals
Overcurrent 1.3 IN
Maximum overload 1.35 times of nominal rating
Maximum inrush current 200 IN
Safety protection Internal fuse within each element
Tolelance on capacitance -5/+10%
Temperature category -25/D according to IEC 60831
Losses Dielectric losses < 0.2 w/kvar
Total < 0.5 w/kvar (discharge resistor included)
Degree of protection IP42 (IP54 on request)
Voltage Test Between terminals 2.15 UN for 10 sec
Between terminals and earth 3 kV for 10 sec
